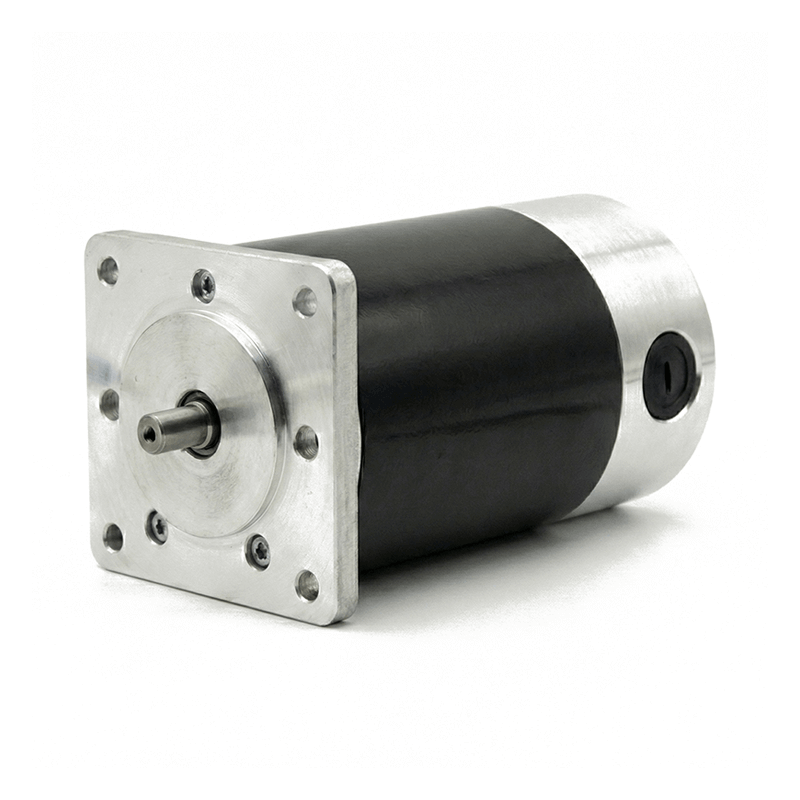

General Specification:
- Voltage Range: 12 & 24v dc (220v also available)
- Power Output Range: 180 to 400 watts
- Speed Range: up to 9,000 rpm
- Operational Temperature: -20°C to +40°C
- Insulation Class: F (Consult us for class B)
- Bearing Type: High quality ball bearing
- Housing Type: Closed (ventilated also available)
Definition of Part number:
100 | ZYT | 145 | 12V | X |
Frame size | Brushed dc motor | Motor length | Voltage | External code |
Specifications:
| Model | Voltage | Rated Power | Rated Speed | Rated Torque | Rated Current | No load Current | No load Speed | Length |
|---|---|---|---|---|---|---|---|---|
| Units | V | W | rpm | mNm | A | A | rpm | mm |
| 100ZYT145-12V | 12 | 290 | 3450 | 0.8 | 32.5 | 5 | 3920 | 145 |
| 100ZYT145-24V | 24 | 290 | 3450 | 0.8 | 15.6 | 2.3 | 3920 | 145 |
| 100ZYT165-12V | 12 | 197 | 2350 | 0.8 | 22 | 3 | 2250 | 165 |
| 100ZYT165-24v | 24 | 348 | 4150 | 0.8 | 20.3 | 3.5 | 4660 | 165 |
| 100ZYT200-12v | 12 | 188 | 1500 | 1.2 | 24.5 | 3 | 1900 | 200 |
| 100ZYT200-24V | 24 | 188 | 1500 | 1.2 | 13 | 1.5 | 1900 | 200 |
Outline:
Customization:
 |  |  |  | |  |
| Shaft | Encoder | Brake | Connector | Pulley | Gearbox |
| Item | Description |
|---|---|
| Shaft Extensions | Motors can be configured with single or double-ended shafts, manufactured to your specific length. |
| Encoder Options | We offer integration with various encoders to meet specific resolution and application needs. |
| Brake Options | Motors can be equipped with an optional brake, available with or without a manual hand release. |
| Cable Harnesses | Custom cable harnesses, with or without connectors, are available upon request. |
| Pulleys & Pinion Gears | Pulleys or pinion gears can be supplied and mounted to your specifications. |
| Gearbox Integration | Most motors can be paired with various gearbox types, including planetary, worm wheel, and parallel shaft gearboxes. |
