General Specification:
- Voltage Range: 24v dc (220v also available)
- Power Output Range: 250 to 600 watts
- Speed Range: up to 9,000 rpm
- Operational Temperature: -20°C to +40°C
- Insulation Class: F (Consult us for class B)
- Bearing Type: High quality ball bearing
- Housing Type: Closed (ventilated also available)

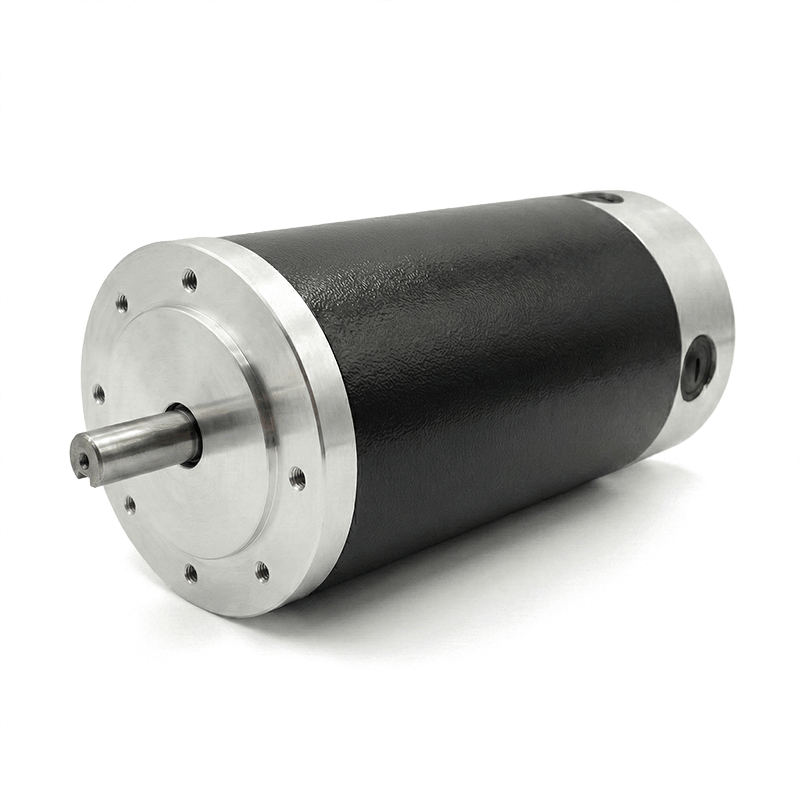

Definition of Part number:
110 | ZYT | 200 | 12V | X |
Frame size | Brushed dc motor | Motor length | Voltage | External code |
Specifications:
Attention please:
These models below are our typical types which can show our products' performance. If these models can meet your requirement just enough, that's perfect. Or, if you can't find a model which meets your requirement, that's fine, we can compeletely customize the specifications according to your requirement. Please contact us if you have any requirement.
| Model | Voltage | Rated Power | Rated Speed | Rated Torque | Rated Current | No load Current | No load Speed | Length |
|---|---|---|---|---|---|---|---|---|
| Units | V | W | rpm | mNm | A | A | rpm | mm |
| 110ZYT200-12V | 12 | 283 | 2700 | 1 | 34.6 | 4.9 | 3270 | 200 |
| 110ZYT200-24V | 24 | 514 | 3070 | 1.6 | 26 | 2.6 | 3350 | 200 |
| 110ZYT200-48v | 48 | 553 | 3300 | 1.6 | 14.3 | 2.5 | 3300 | 200 |
Outline:
Customization:
 |  |  |  | |  |
| Shaft | Encoder | Brake | Connector | Pulley | Gearbox |
- Shaft Extensions: All motors can be supplied with single or double ended shaft, keyway or flat cut can made according to per customer’s request. The length of shaft can made as per customer’s request too.
- Encoder option: All motors can be supplied with different revolution encoder according to customer’s request.
- Brake option: All motors can be supplied with brake with or without hand release.
- Cable harness & intergrated connector: Cable harness with or without connectors or intergrated connectors can be supplied according customer’s request.
- Pulley & pinion gear: Pulley or pinion gear is available according to customer’s request.
- Gearbox option: Most of our motors can be supplied with gearboxes, such as planetary gearbox, worm wheel gearbox and parallel shaft gearbox.
