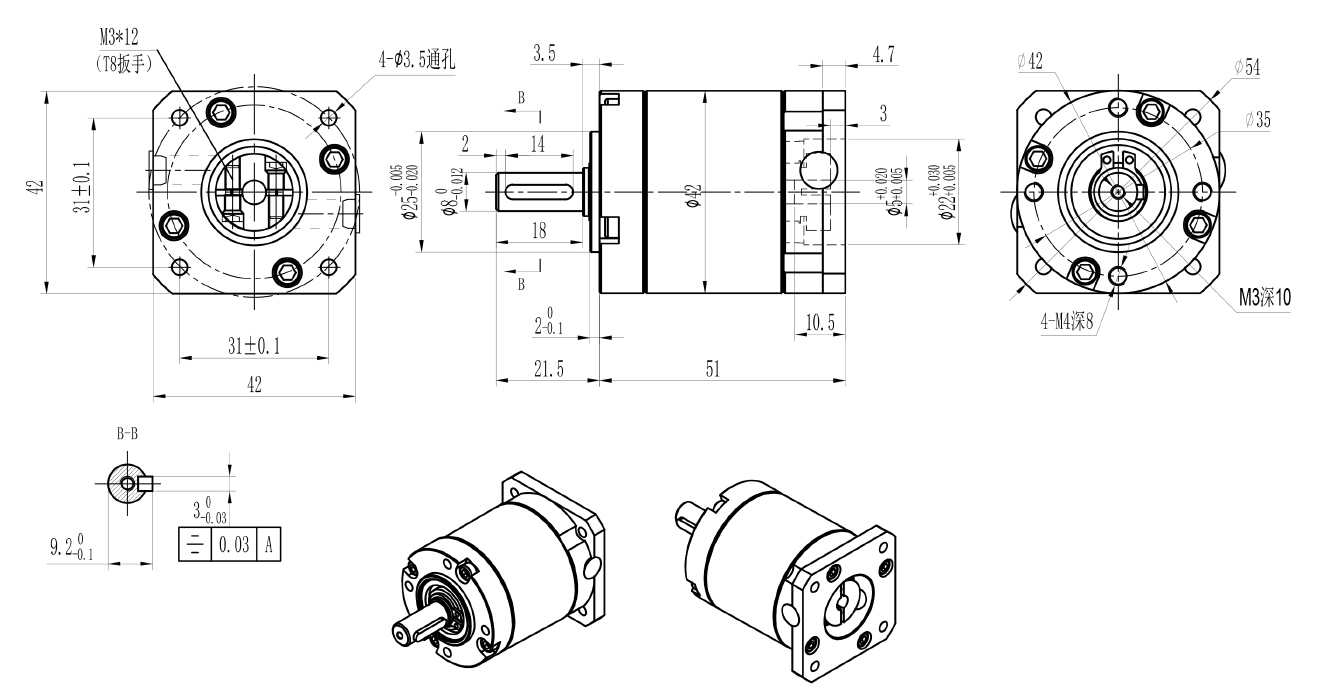

φ42 mm, ratio: 20/25/50, ≤50 arcmin for NEMA 17 stepper motor with 9.5 mm shaft length
| Compatible Motor | φ5-10 / φ22–2 / F31–M3 |
| Mounting Type | Motor Shaft Clamp Type |
| Full Load Efficiency | 90% |
| Noise Level | ≤55dB |
| Weight | 0.25Kg |
| Protection Grade | IP54 |
| Lubrication | Long-lasting Lubrication |
| Operating Temperature | -10° ~ +90° |
| Model | Gear Ratio | Rated Output Torque TN (Nm) |
| FLE42-20 | 20:1 | 10 |
| FLE42-25 | 25:1 | 10 |
| FLE42-50 | 50:1 | 10 |
| Gear Ratio | 20, 25, 50 |
|---|---|
| Size | 42 |
| Shape | Round |
| Precision | 50 |
| Motor Type | Stepper Motor |
| Match for | 9.5 mm shaft length |
