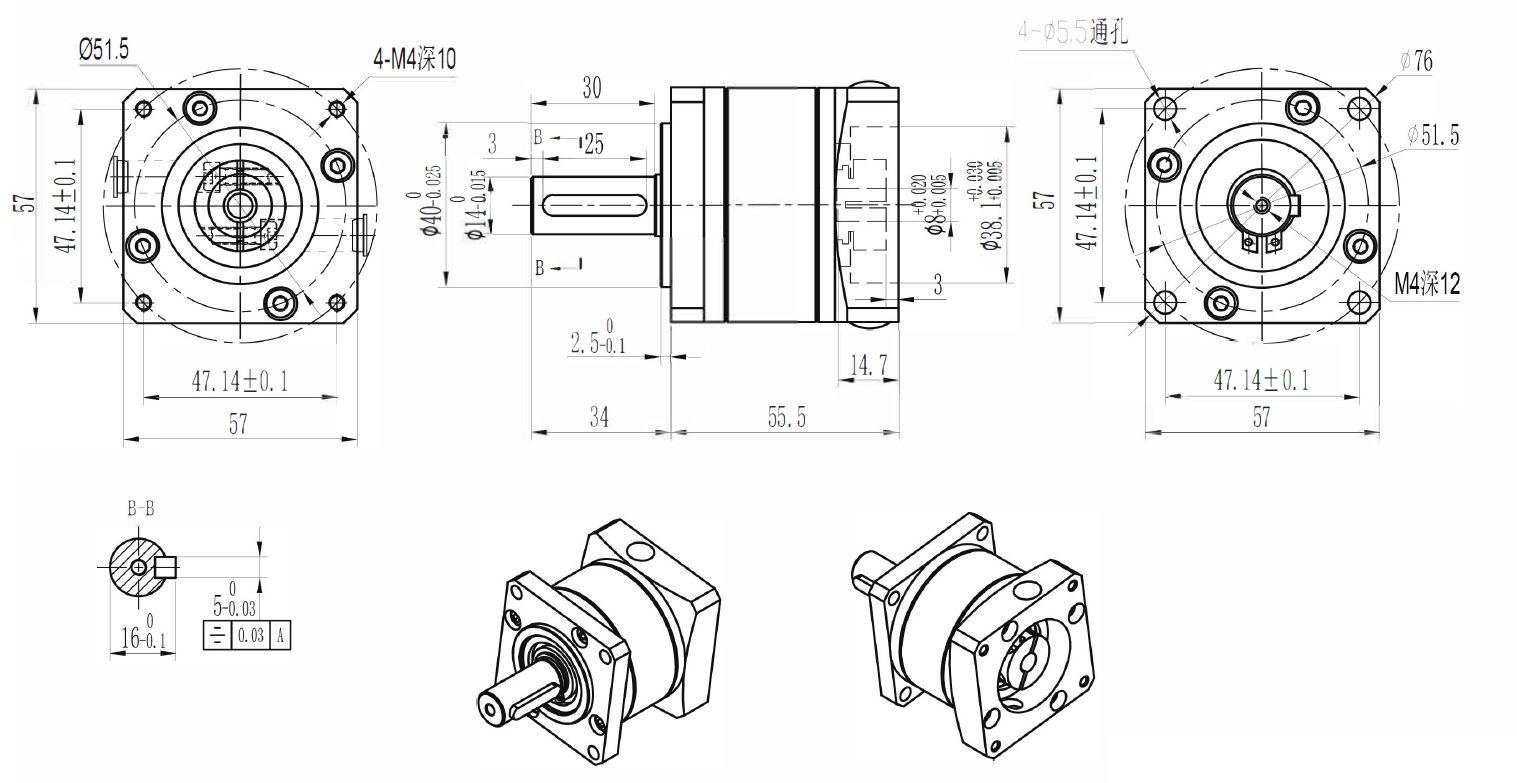

57*57 mm, ratio: 4/5/10/, ≤ 25 arcmin for NEMA 23 stepper motor with 14.5 mm shaft length
| Compatible Motor | φ8-14 / φ38.1–2 / F47.14–M4 |
| Mounting Type | Motor Shaft Clamp Type |
| Full Load Efficiency | 90% |
| Noise Level | ≤60dB |
| Weight | 0.64Kg |
| Protection Grade | IP54 |
| Lubrication | Long-lasting Lubrication |
| Operating Temperature | -10° ~ +90° |
| Model | Gear Ratio | Rated Output Torque TN (Nm) |
| FLF57-04 | 4:1 | 25 |
| FLF57-05 | 5:1 | 25 |
| FLF57-10 | 10:1 | 10 |
| Gear Ratio | 4, 5, 10 |
|---|---|
| Size | 57 |
| Shape | Square |
| Precision | 25 |
| Motor Type | Stepper Motor |
| Match for | 14.5 mm shaft length |
