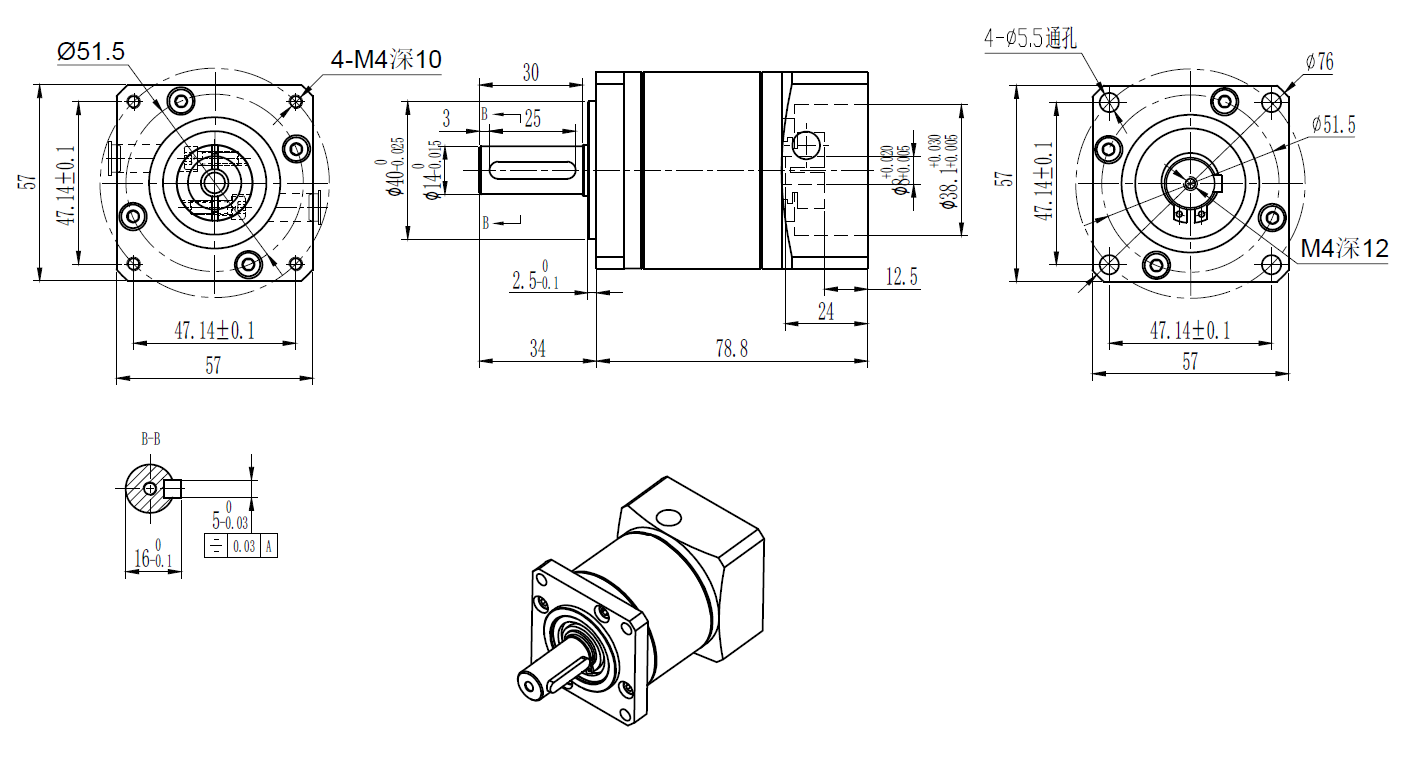

57*57 mm, ratio: 20/25/50 , ≤ 50 arcmin for standard NEMA 23 stepper motor
| Compatible Motor | φ8-14 / φ38.1–2 / F47.14–M4 |
| Mounting Type | Motor Shaft Clamp Type |
| Full Load Efficiency | 90% |
| Noise Level | ≤60dB |
| Weight | 0.64Kg |
| Protection Grade | IP54 |
| Lubrication | Long-lasting Lubrication |
| Operating Temperature | -10° ~ +90° |
| Model | Gear Ratio | Rated Output Torque TN (Nm) |
| FLF57-020SW | 20:1 | 25 |
| FLF57-025SW | 25:1 | 25 |
| FLF57-050SW | 50:1 | 20 |
| Gear Ratio | 20, 25, 50 |
|---|---|
| Size | 57 |
| Shape | Square |
| Precision | 50 |
| Motor Type | Stepper Motor |
| Match for | Standard |
42*42 mm, ratio: 16/20/25/28/35/40/45/50/70 , ≤ 20 arcmin, for standard NEMA 23 stepper motor
42*42 mm, ratio: 4/5/7/10 , ≤ 15 arcmin, for NEMA 17 stepper motor with 9.5 mm shaft length
90*90 mm, ratio: 4/5/7/10, ≤ 10 arcmin, for standard NEMA 34 stepper motor
60*60 mm, ratio: 4/5/7/10 , ≤ 20 arcmin, for NEMA 23 stepper motor with 14.5 mm shaft length
