General Specification:
| Compatible Motor | φ14–40(30) / φ73-3 / F69.6–M5 |
| Reduction Ratio | i = ( ) : 1 |
| Rated Output Torque | T Nm |
| Stall Torque | 2T Nm |
| Rated Input Speed | 3000 min⁻¹ |
| Maximum Input Speed | 6000 min⁻¹ |
| Mounting Type | Any |
| Average Service Life | 20000 h |
| Backlash | ≤15 arcmin |
| Full Load Efficiency | 94% |
| Noise Level | ≤60 dB |
| Weight | Kg |
| Protection Grade | IP54 |
| Lubrication | Long-lasting Lubrication |
| Operating Temperature | -10° ~ +90° |
Model Selection:
| Model | Gear Ratio | Rated Output Torque TN (Nm) |
| SPLF90-016MB | 16:1 | 90 |
| SPLF90-020MB | 20:1 | 90 |
| SPLF90-025MB | 25:1 | 100 |
| SPLF90-028MB | 28:1 | 90 |
| SPLF90-035MB | 35:1 | 100 |
| SPLF90-040MB | 40:1 | 90 |
| SPLF90-050MB | 50:1 | 100 |
| SPLF90-070MB | 70:1 | 70 |

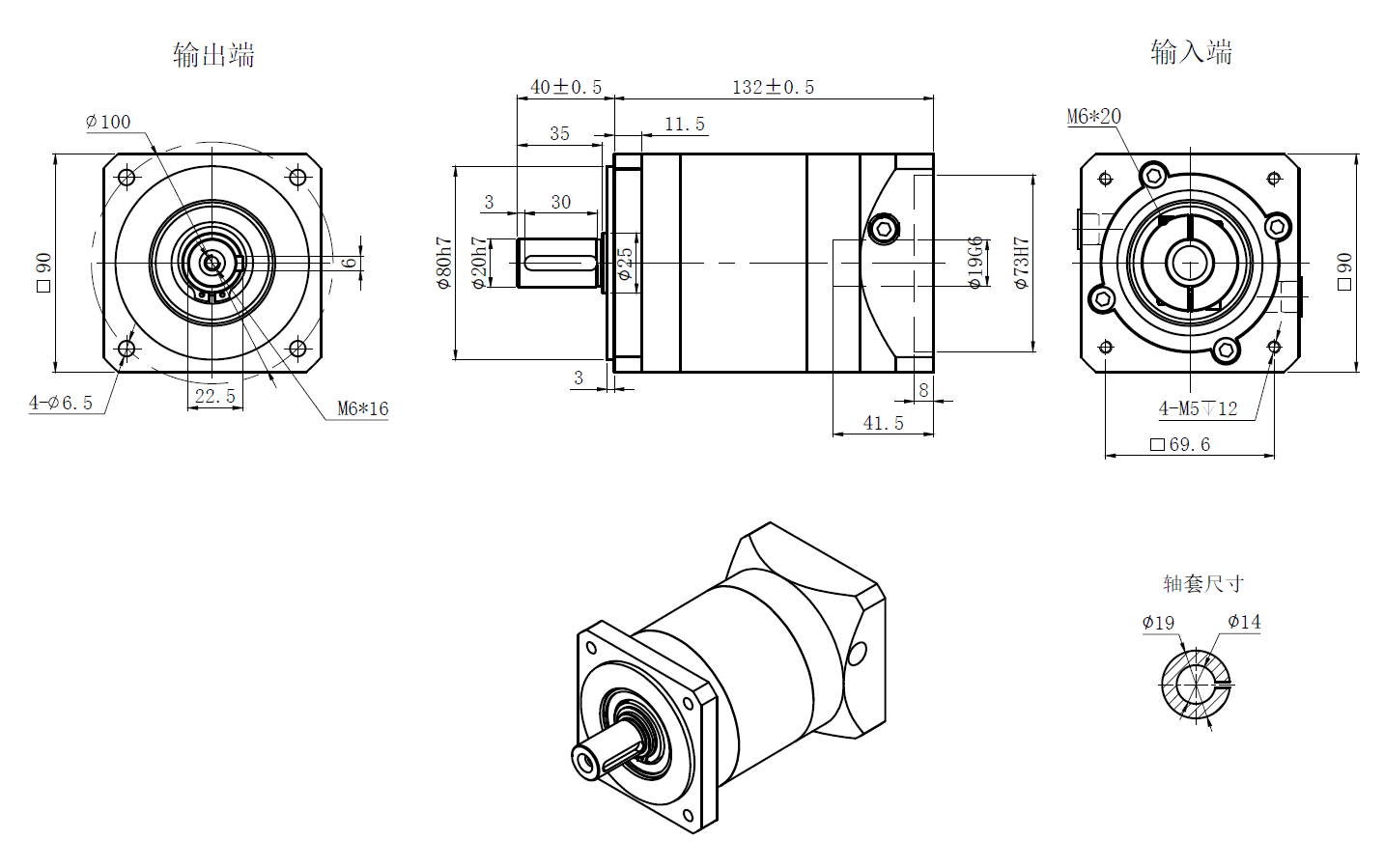

Outline:
