| Gear Ratio | 3, 4, 5, 7, 10 |
|---|---|
| Size | 42 |
| Shape | Round |
| Precision | 15 |
| Motor Type | Stepper Motor |
| Match for | 9.5 mm shaft length |

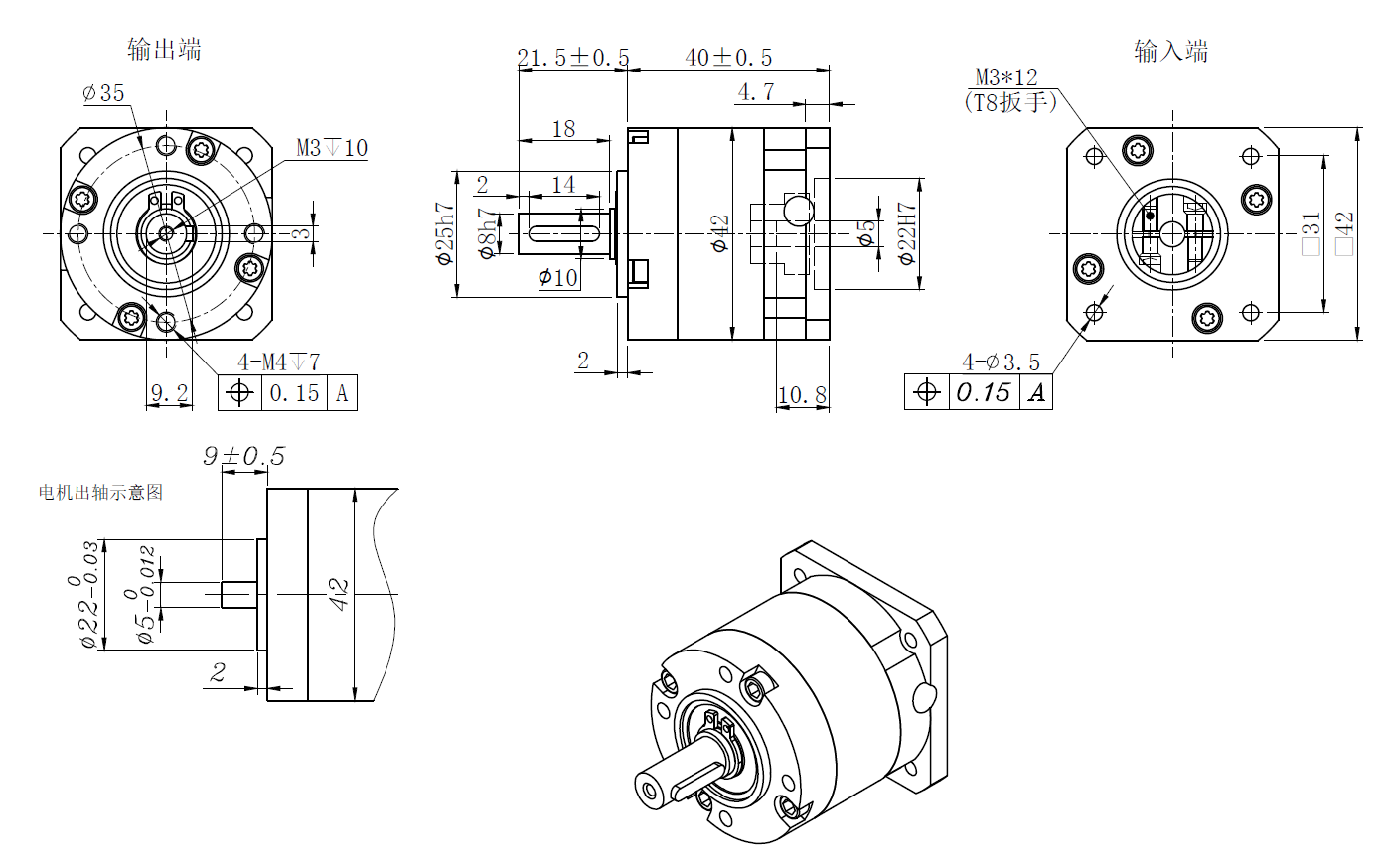

Planetary Gearbox, Precision Type
PLE42-L1
φ42 mm, ratio: 3/4/5/7/10 , ≤ 15 arcmin for NEMA 17 stepper motor with 9.5 mm shaft length
